Features Gallery Product Description Request A Quote

Features

Specifications

Product Name:: ECG Battery

Used On:: 8-HRAAFD

Cell Type:: NI-MH

Condition:: Original

Voltage:: 9.6V

Capacity:: 1.1Ah

Energy:: 97Wh

Charge Time:: 4-5 Hours

Shipping By:: DHL & FedEx

Cycle Life:: ≥300 Times

Size:: 130mm×65mm×25mm

Highlight:

9.6V ECG Battery

1100mAh Medical Equipment Battery

Cycle Life ≥300 Times Fukuda FCP-2155 Battery

Basic Infomation

Payment & Shipping Terms

Packaging Details: Carton Package

Payment Terms: T/T,Western Union,PayPal

Gallery

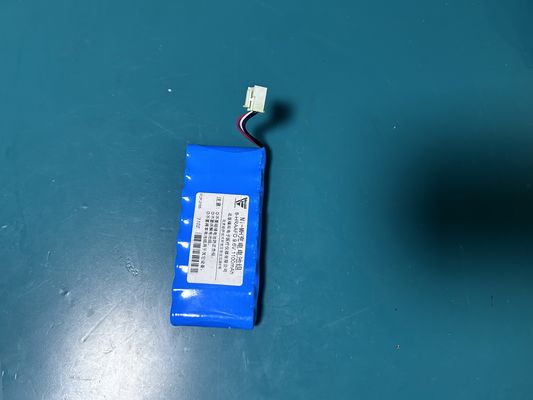

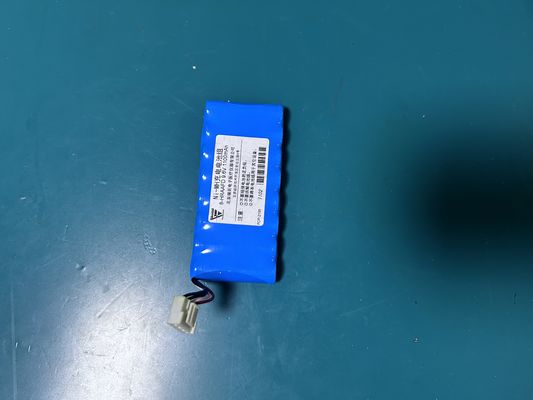

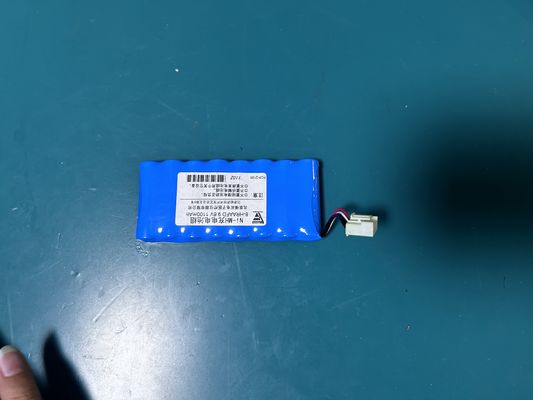

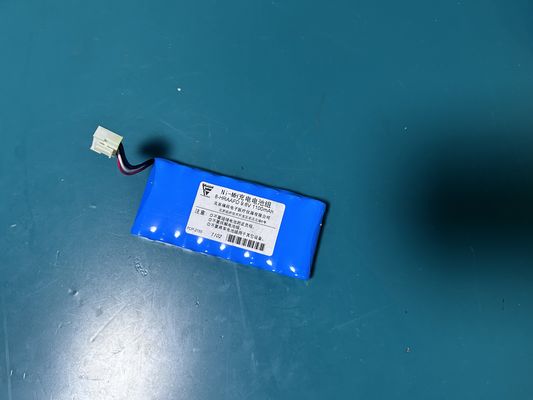

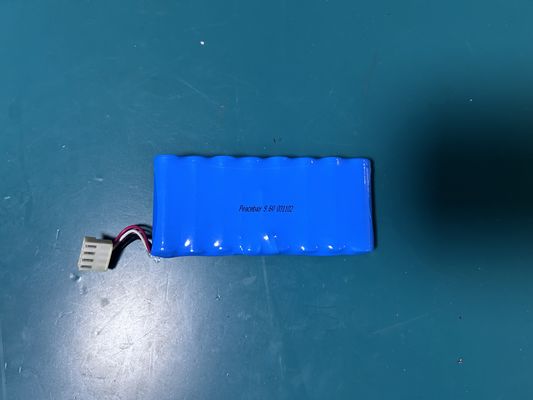

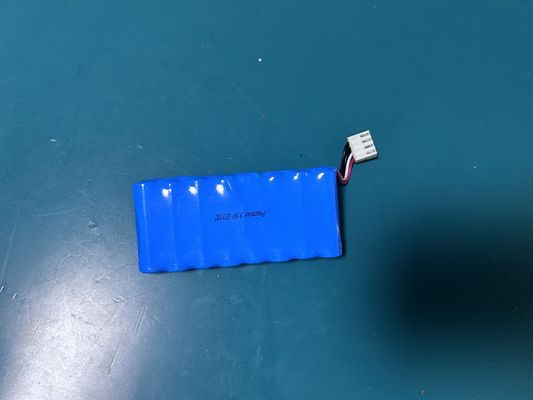

Original Fukuda FCP-2155 ECG Battery 9.6V 1100mAh with Cycle Life ≥300 Times for Medical Equipment

Product Description

Original Fukuda FCP-2155 ECG EKG Machine Battery 8-HRAAFD 9.6V 1100mAh

The Fukuda FCP-2155 ECG machine battery is an 8-HRAAFD 9.6V 1100mAh type specifically designed for the Foton FCP-2155 series ECG machines. This rechargeable medical device battery consists of eight AAA-specification Ni-MH cells connected in series, serving as a core power component that ensures the device's mobile clinical use. The battery has no memory effect, supports repeated charge and discharge cycles, and offers a cycle life of approximately 500 cycles, meeting medical device requirements for stability and safety.

Key Functions

Mobile Outpatient Testing: Enables device operation without fixed power source. A full charge allows the Fukuda FCP-2155 ECG machine to complete 10-12 routine ECG records, ideal for high-frequency outpatient scenarios.
Bedside Emergency Applications: Provides stable 9.6V voltage output for parameter monitoring. The 1100mAh capacity supports 30 minutes of continuous monitoring, suitable for rapid bedside diagnosis in emergencies.
Outdoor Screening Adaptation: Lightweight design facilitates transport to community clinics and mobile medical units. Compatible with vehicle chargers, a full charge can complete rapid screening for 20-25 people.

Technical Specifications

Product Name	ECG Battery
Model	8-HRAAFD
Voltage	9.6V
Capacity	1.1Ah
Energy	97Wh
Number of Battery Cells	8
Charge Time	4-5 hours
Cycle Life	≥300 times
Storage Lifespan	2 years
Color	Blue
Size	130mm×65mm×25mm
Weight	About 280g
Interface Type	4-pin reverse insertion jack

Usage Precautions

Capacity Decay Management: When battery life drops below 70% of initial value, replacement is recommended to avoid power outages during monitoring.
Charging Procedures: Only use the original Fukuda charger to prevent overcharging, swelling, or damage to the device's power module.
Storage and Maintenance: For idle periods exceeding one month, charge to 50%-60% and store in dry environment (10-30℃, humidity <70%). Recharge every 3 months to prevent cell aging.
