Features

Specifications

Product Name:: Maquet

Model:: RRC2024

Cell Type:: Li‑ion

Voltage:: 14.4V

Capacity:: 6.6Ah

Energy:: 95.04Wh

Color:: Black

Charging Time:: 2-2.5 Hours

Size:: 180mm×85mm×42mm

Weight:: About 850g

Highlight:

6.6Ah Ventilator Battery

95WH Medical Battery Pack

180mm×85mm×42mm Lithium-Ion Battery

Basic Infomation

Brand Name: Maquet

Payment & Shipping Terms

Packaging Details: Carton Package

Payment Terms: T/T,Western Union,PayPal

Gallery

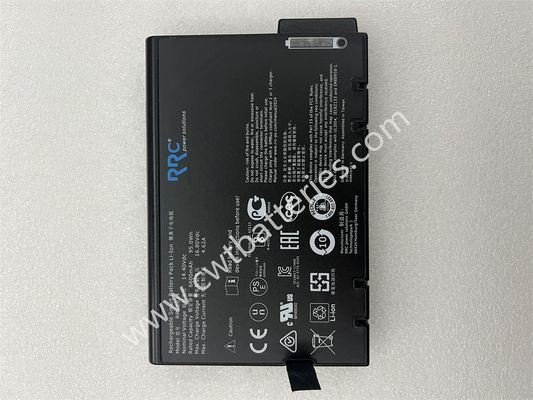

Maquet RRC2024 14.4V 6.6Ah 95WH Smart Rechargeable Lithium-Ion Ventilator Battery Pack for Servo-i and Servo-u

Product Description

Maquet Ventilator Rechargeable Smart Lithium-Ion Battery Pack RRC2024 14.4V 6.6AH 95WH

The Maquet RRC2024 is a genuine intelligent backup power module designed specifically for high-end ICU ventilators such as the Servo-i and Servo-u. This battery utilizes a 14.4V, 6.6AH, high-capacity lithium-ion cell design, providing continuous and stable power output for the ventilator, ensuring uninterrupted device data monitoring.

Core Features

Intelligent Real-Time Status Monitoring: Supports synchronization of battery data with a remote central control system, allowing medical staff to proactively identify power supply risks.
Millisecond-Level Emergency Switching: Provides seamless power switching in ≤8ms when external power is interrupted, preventing ventilator downtime and ensuring continuous patient ventilation.
Hot-Swap Safe Replacement: Supports removal and installation while the ventilator is running, without interrupting ventilation therapy, making it ideal for emergency scenarios.
Intelligent Charging Management: Features two charging stages (fast charging and trickle charging) with complete charge in 4.5 hours and cell protection to extend battery life.

Technical Specifications

Brand	Maquet Medical
Model	RRC2024
Battery Type	Li-ion
Voltage	14.4V
Capacity	6.6Ah
Energy	95.04Wh
Working Current	3.5-4.0A
Maximum Operating Current	8.0A
Charging Time	2-2.5 hours
Charging Temperature Limit	0-40℃
Color	Black
Size	180mm×85mm×42mm
Weight	About 850g

Frequently Asked Questions

Q1: There is a 5cm scratch on the battery casing (not broken) and slight deformation near the connector. Does this affect safety?

A1: Minor scratches do not affect safety, but connector deformation requires special inspection. A deformed connector may cause poor connection with the ventilator and requires manual testing: Reinstall the battery into the ventilator and confirm that the latch is properly fastened. Power on the device and observe for 30 minutes. If no abnormalities such as "power outage" or "communication error" are detected, the battery can continue to be used in a fixed ICU setting. If the connector fails to fasten or an abnormal alarm is displayed, the casing must be replaced.

Q2: When using the battery in a low-temperature environment, the ventilator frequently displays "Battery Temperature Low," but the patient requires continuous ventilation. What should be done?

A2: Use a battery-specific thermal cover with a built-in heating element to cover the battery and ventilator connector to raise the battery temperature to above 5°C. At the same time, turn off the humidifier to reduce power consumption and reduce battery load. If the "Low Temperature" message persists, use a backup battery in alternating mode to ensure each battery has time to warm up and recover.

Q3: The battery has reached 580 cycles and the health indicator shows 79%. Do I need to replace it immediately?

A3: No, it doesn't need to be replaced immediately. However, we recommend recording the battery health and battery life weekly. If the health decreases by more than 1.5% per month, or the battery life decreases by more than 5 minutes per month, it should be replaced within one month. Avoid using it in critical scenarios such as long-distance ambulance visits. Prioritize it for low-risk scenarios such as daily ICU backup and short-distance transport. If the health drops below 75% or the battery life is less than 90 minutes, replace it immediately to ensure safe operation.
