Home /Products/Medical Batteries/INSPIRED ENERGY Integra Battery 14.5V 3.1Ah for Medical Devices

INSPIRED ENERGY Integra Battery 14.5V 3.1Ah for Medical Devices

1
MOQ
USD
Price
INSPIRED ENERGY Integra Battery 14.5V 3.1Ah for Medical Devices
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name:: Battery
Model:: BAT1001
Condition:: 100% NEW
Voltage:: 14.5V
Capacity:: 3.1Ah
Energy:: 45Wh
Weight:: 300g
Charge Time:: 6-8 Hours
Size:: 110mm×65mm×28mm
Warranty:: 90 Days
Highlight:

14.5V medical device battery

,

Integra Battery for medical equipment

,

3.1Ah medical battery with warranty
Basic Infomation
Brand Name: Inspired
Model Number: BAT1001
Payment & Shipping Terms
Packaging Details: Carton Package
Payment Terms: T/T,Western Union,PayPal
Product Description

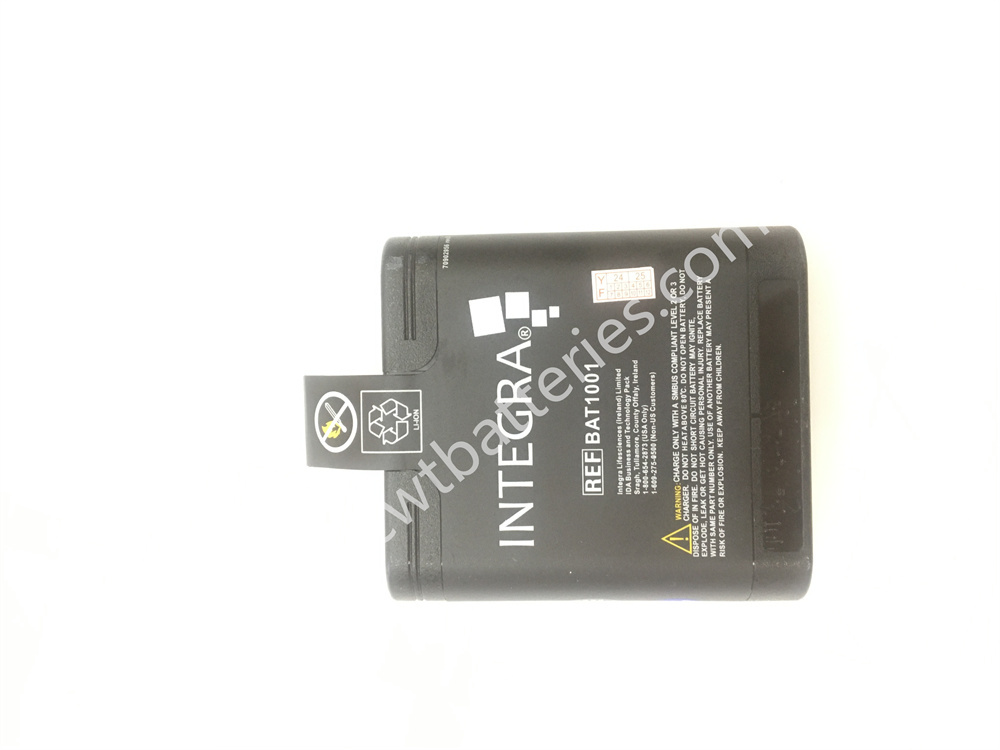

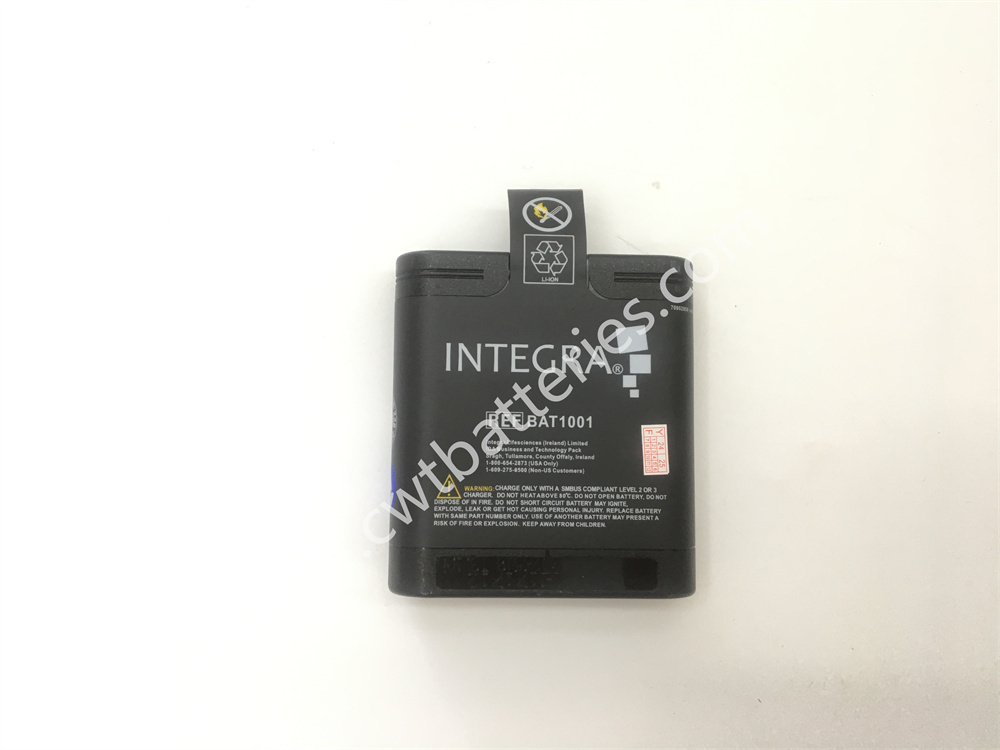

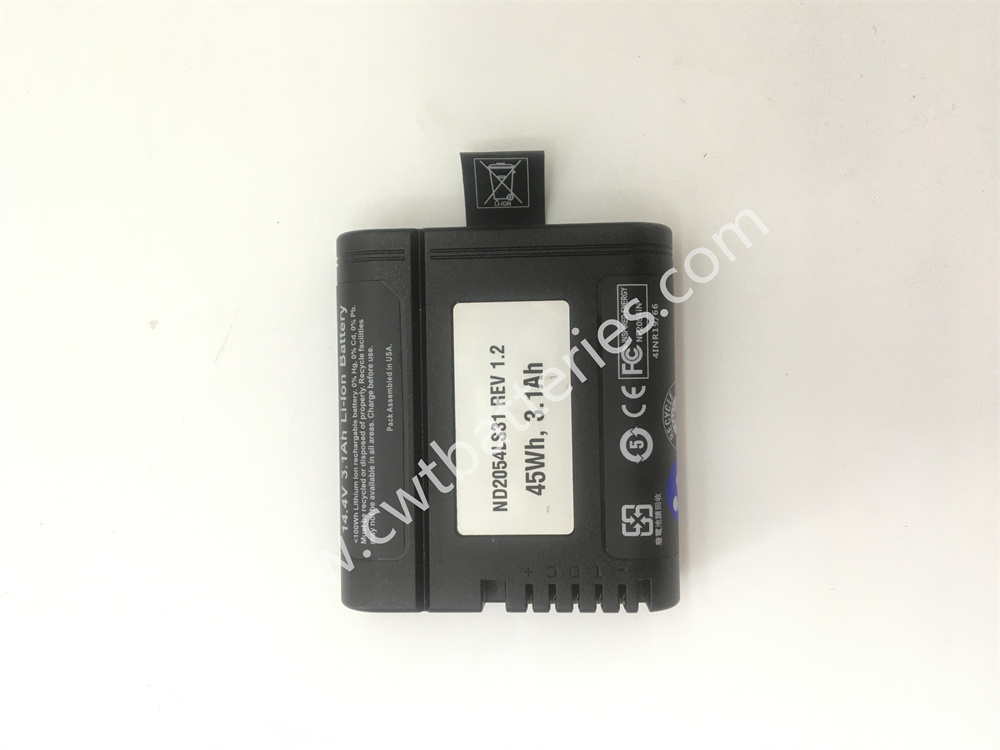

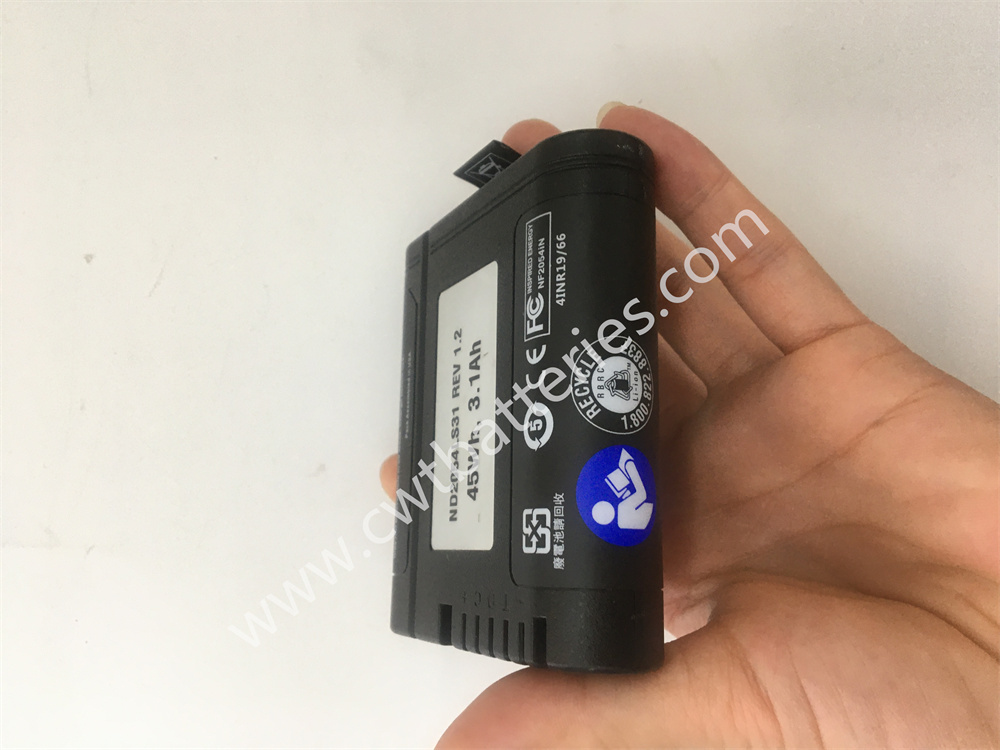

INSPIRED ENERGY Integra Battery REF BAT1001 ND2054LS31 REV 1.2 45Wh 3.1Ah
The INSPIRED ENERGY Integra Battery is a rechargeable power solution specifically engineered for portable medical devices. With a 45Wh energy reserve and 3.1Ah rated capacity, it features an intelligent battery management system that provides real-time health monitoring while protecting against overcharging, over-discharging, short circuits, and overheating. This advanced system minimizes cell cycle loss and extends overall battery lifespan.
Designed with precise voltage regulation and durable construction, this battery delivers stable, long-lasting power for medical diagnostics and industrial testing equipment.
Compatible Models
Primary Compatibility: INSPIRED ENERGY Integra series devices including small ECG monitors, handheld ultrasound diagnostic probes, and portable oximeters.
Device Functions
Powers portable monitoring equipment for real-time patient vital sign tracking. Enables mobile operation, enhancing convenience during ward rounds, patient transport, and other medical scenarios without access to mains power.
Technical Specifications
Product Name Battery
Model INSPIRED ENERGY Integra REF BAT1001
Cell type Li-Polymer
Voltage 14.5V
Capacity 3.1Ah
Energy 45Wh
Charging time 6-8 hours (using INTEGRA original 14.5V/0.5A charger)
Cycle life ≥500 times (capacity retention rate ≥80%)
Size 110mm×65mm×28mm
Weight About 300g
INSPIRED ENERGY Integra Battery 14.5V 3.1Ah for Medical Devices 0 INSPIRED ENERGY Integra Battery 14.5V 3.1Ah for Medical Devices 1
Frequently Asked Questions
Q1: Is this battery's interface compatible with other brands of devices with the same power rating?
A1: While the battery may physically fit some devices from different brands, cross-brand use is not recommended due to varying battery communication protocols. This can lead to issues like misidentification and inaccurate battery level reporting. For optimal performance and safety, we recommend exclusive use with compatible INSPIRED ENERGY devices.
Q2: What should I do if the battery won't charge after being stored for a long time?
A2: Extended inactivity may trigger the battery management system's protection mode. Connect the battery to its original charger and allow 10-15 minutes for voltage recovery. If normal charging doesn't resume, contact our after-sales service for professional activation. Never attempt to disassemble the battery yourself.
Q3: How can I tell if the battery needs to be replaced?
A3: Replacement is recommended when observing any of these conditions:
  • Significant runtime reduction (e.g., from 5 hours to less than 2 hours)
  • Excessive charging time exceeding 10 hours
  • Physical damage including bulging, leakage, or connector corrosion
  • Persistent "battery failure" messages after device troubleshooting
