Ohmeda 1503-3045-000 7900 5000 3000 12V 2300mAh Compatible Battery Anesthesia Machine Battery
Ohmeda 1503-3045-000 7900 5000 3000 12V 2300mAh Compatible Battery
► Brief Introduction
The Ohmeda 1503-3045-000 battery is a compatible medical battery that can be used in Ohmeda anesthesia machines. The compatible models are Ohmeda Aespire 7900, 5000, and 3000 series anesthesia machines. Before using this battery, please confirm whether the device model is compatible with the battery to avoid damage to the device. The battery can provide stable power support for the anesthesia machine to ensure the continuity of the anesthesia process.
► Typical application scenarios
1. Patient transfer
Maintain the operation of the anesthesia machine during the transfer of patients to ensure continuous monitoring of the patient's respiratory parameters. Common scenarios are: emergency transfer to the operating room, ICU transfer to the operating room, etc.
2. Emergency power supply
In the event of a sudden power outage or the equipment cannot be charged, the battery can be used as a temporary power supply to power the anesthesia machine to ensure the continuous operation of the anesthesia process and the uninterrupted monitoring data.
In the event of a power outage or equipment failure in the hospital, it serves as a temporary power supply to ensure key monitoring.
3. Backup power supply
At temporary medical sites and other medical sites without fixed power supplies, it is used as a backup power supply for key medical equipment to power the equipment, and is used alternately with the original battery to ensure the stable operation of the equipment.
4. Field first aid
Provide stable power support for the anesthesia machine in outdoor field first aid sites.
► Parameters
|
Battery model
|
1503-3045-000
|
|
Cell Type
|
Ni-MH
(has no memory effect and supports frequent charging and discharging)
|
|
Voltage
|
12V adapts to the power supply requirements of Ohmeda devices
|
|
Capacity
|
2300mAh Energy density 27.60Wh
|
|
Size
|
150×80×50mm compact design, easy to install inside the device
|
|
Weight
|
About 500g lightweight design, does not affect the portability of the device
|
|
Cycle life
|
≥500 次
|
|
Charging time
|
≤4 hours
|
|
Operating temperature
|
0°C ~ 40°C
|
|
Storage temperature
|
-20°C to 50°C Dry environment recommended for long term storage
|

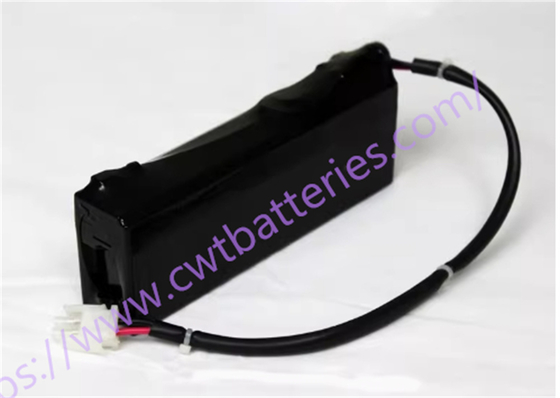

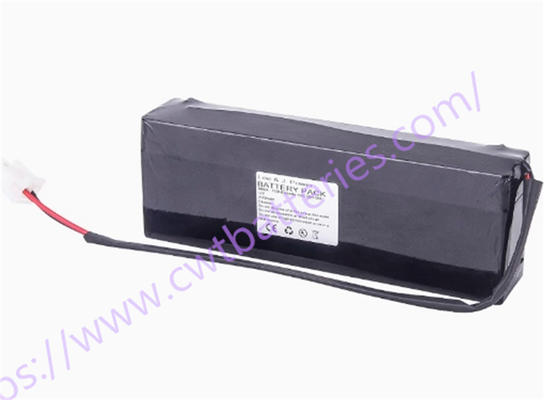

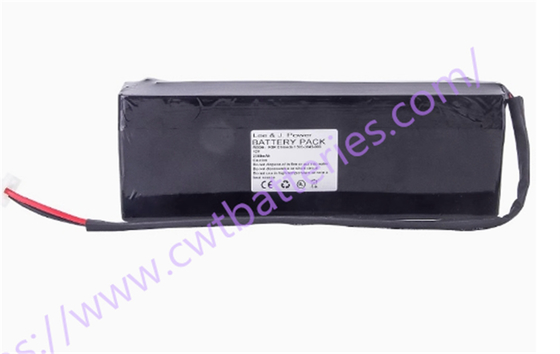

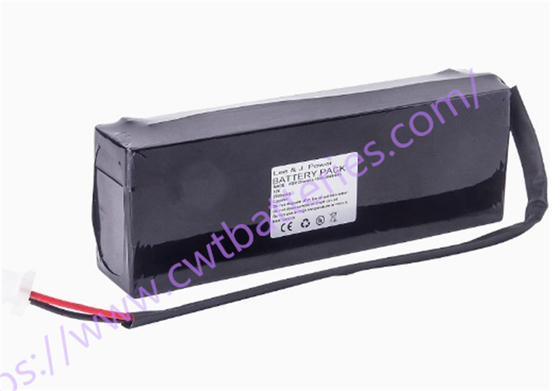

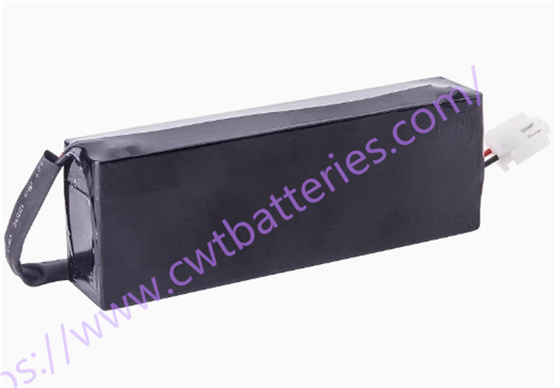

► Product Picture
► Notes on battery use
1. Compatibility confirmation
Before use, please confirm whether the battery model is compatible with the device model you want to operate, and confirm whether it is compatible to avoid damage to the device due to compatibility issues.
2. Charging specifications
Before using the battery for the first time, please fully charge it for 12 hours to activate the battery. It is recommended to charge it when the power is less than 20% for subsequent charging.
Avoid overcharging during use.
3. Storage environment
Avoid using it in high temperature (>40°C), high humidity or strong magnetic field environments, which may affect the battery life.
When the battery is not used for a long time, keep the battery power at 40%-60%, and charge it once every 3 months to prevent over-discharge.
4. Safe operation
Do not disassemble the battery by yourself to avoid danger caused by leakage of electrolyte in the battery.
If the battery swells, leaks or has an odor, please stop using the battery immediately and contact a professional for treatment.
