MSC Freiburg CardioServ 30344030 M&M C120 SCP913915 Compatible Battery for Medical Equipment
MSC Freiburg CardioServ 30344030 M&M C120 SCP913915 Compatible Battery
► Brief Introduction
This battery is a compatible medical battery that can replace the original battery of the CardioServ series of medical equipment. The purchase cost is lower than the original battery. The battery capacity is 3000mAh, which can provide a long-term power supply for portable monitors or defibrillators to ensure the continuity of equipment monitoring.
This battery is made of lithium battery and has the consistent design features of lithium batteries: lightweight, battery size is 120*115mm, battery weight is about 420g, very light, but the battery capacity is not low, 3000mAh, nominal voltage is 12V, can support portable defibrillators and monitors for a long time; and the battery self-discharge rate is very low, less than 3% per month. In the case of long-term non-use, as long as it is stored in a suitable environment, the battery can still have available power, and it does not need to be frequently maintained to replenish the battery, saving labor costs.
So if you need to purchase a backup power supply for portable medical equipment in the hospital, this one is a very good choice. The purchase price is lower than the original battery, but the function is a one-to-one copy of the original battery. The compatible device models are GE MSC Freiburg CardioServ 30344030 SCP913 SCP915 SCP922 SCP910 GE120. For your safety, please confirm with the staff whether this battery can be adapted to your device before purchasing.
► Battery functions
1. Support mobile monitoring of equipment
With storage batteries, medical equipment does not need to rely on fixed power sources. When necessary, monitors or defibrillators can be moved at any time, which is convenient for clinical use and more suitable for medical scenarios such as transporting critically ill patients, on-site first aid, and field rescue.
2. Intelligent battery management
The battery has a built-in chip that communicates with the device and can be connected to the host to display the remaining power and battery status on the display screen, so that users can observe the battery power and charge in advance to avoid unexpected situations.
3. Fast charging
This battery has a fast charging function, which can generally fully charge the battery in 3 hours; and it can directly charge the battery when the device is connected to an external AC power source, without having to disassemble it, which is very convenient.
4. Backup power supply
It can be used as a backup power supply for critical medical equipment to prevent monitoring from stopping in unexpected situations, such as power outages, outdoor first aid, temporary rescue stations, etc.
► Parameters
Product Name |
Battery |
Applicable Models |
MSC Freiburg CardioServ 30344030, M&M C120, SCP913915 |
Nominal Voltage |
12V DC |
Rated Capacity |
3000mAh (36Wh) |
Cell Type |
Lithium Ion (Li-ion) |
Charging Temperature |
0°C ~ 45°C (32°F ~ 113°F) |
Discharging Temperature |
-10°C ~ 60°C (14°F ~ 140°F) |
Cycle Life |
≥500 Times (to 80% of Capacity) |
Full Charge Voltage |
12.6V–14.4V (Controlled by Device Charger) |
Dimensions |
120*115mm |
Weight |
420g |
Color |
White |

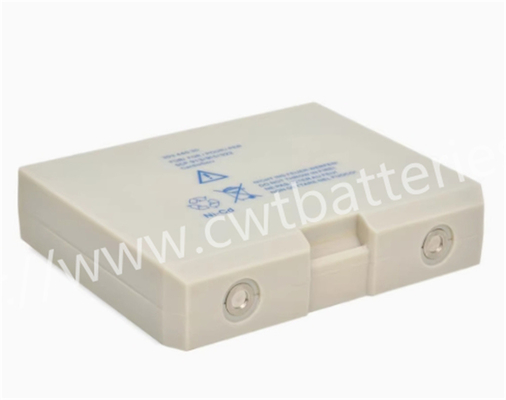

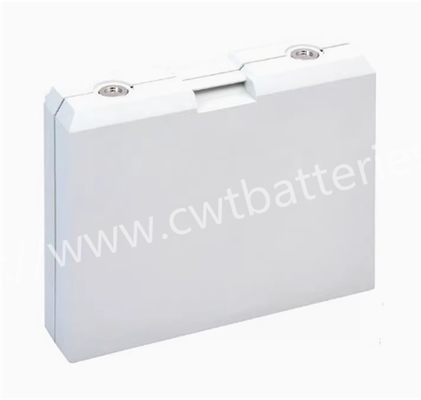

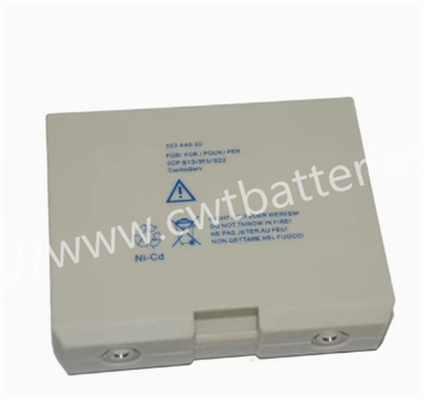

► Product Picture
► Precautions for use
1. Charging safety
Please use the original charging base or certified charger to charge the battery, otherwise it may affect the battery performance.
Avoid charging the battery in an environment with a temperature higher than 45 degrees, as there are risks in use.
2. Storage environment
If the battery is not used for a long time, please keep the battery power at 50%~60%
Store in a cool and dry place (15°C–25°C), away from metal objects.
3. Battery replacement
Replace when the battery life decreases by >30%, the device frequently reports "battery error" or has been used for more than 2 years.
4. Physical damage
Do not disassemble or squeeze the battery for physical damage; avoid contact with water or flames.
5. Compatibility confirmation
Be sure to verify that the battery and device model are fully matched (such as SCP913915). The wrong battery may cause malfunction or damage the device.
